Front Drive Axle for YT1804 Tractor

Product type: Farm Machinery Axle

Address:NO.257 Kangwang West Road,Feicheng City,

Address:Shandong Province.

Tel:+86.538 2095198   2095186   3302973   3302663

After-sale service:+86.538 3302961 ;  2095189   2095178

Fittings department:+86.538 2095198 3302651

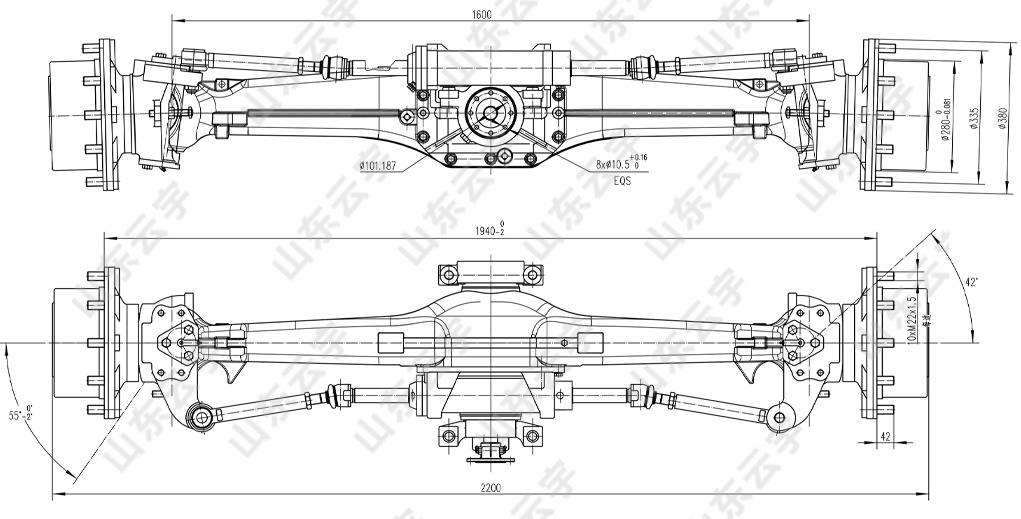

Main connection dimensions



Characteristics:

● Introduce advanced technology of foreign wheeled tractors.

● Adopt middle drive shaft and swing central swing pin.

● Internal structure includes central deceleration, differential, constant speed direction and terminal planetary deceleration.

● Integral bridge housing with good rigidity. It is a two-stage deceleration structure with large output torque.

● Adopt compact multi-page latch, lock balance, smooth operation.

● Centralized steering cylinder with more compact structure.

● Double-acting independent oil circuit, full hydraulic front wheel steering, turning angle up to 55 degrees.

● Adapt 130-180 HP four-wheel drive tractor.

Technical parameter

Front wheel maximum turning angle

55°
Steering cylinder diameter (mm)
75

Total speed ratio

20.769
17.574

Steering cylinder stroke (mm)
138×2

Front wheel alignment parameters

Front wheel camber
1°30"
Cylinder tubing interface
M18×1.5

Kingpin inclination angle

Differential Lock Control Oil Port

M14×1.5

Kingpin inclination angle

Differential Lock Manipulates Oil Pressure
2MPa

Front Wheel Front Bundle (mm)

0-2
Rated load (Kg)
7500
