Farm Machinery Axle

HOME > PRODUCTS > Product Center > Farm Machinery Axle > Farm Machinery Axle

Front Drive Dxle for YT800 Tractor

Product type: Farm Machinery Axle

Address:NO.257 Kangwang West Road,Feicheng City,

Address:Shandong Province.

Tel:+86.538 2095198   2095186   3302973   3302663

After-sale service:+86.538 3302961   2095189   2095178

Fittings department:+86.538 2095198 3302651

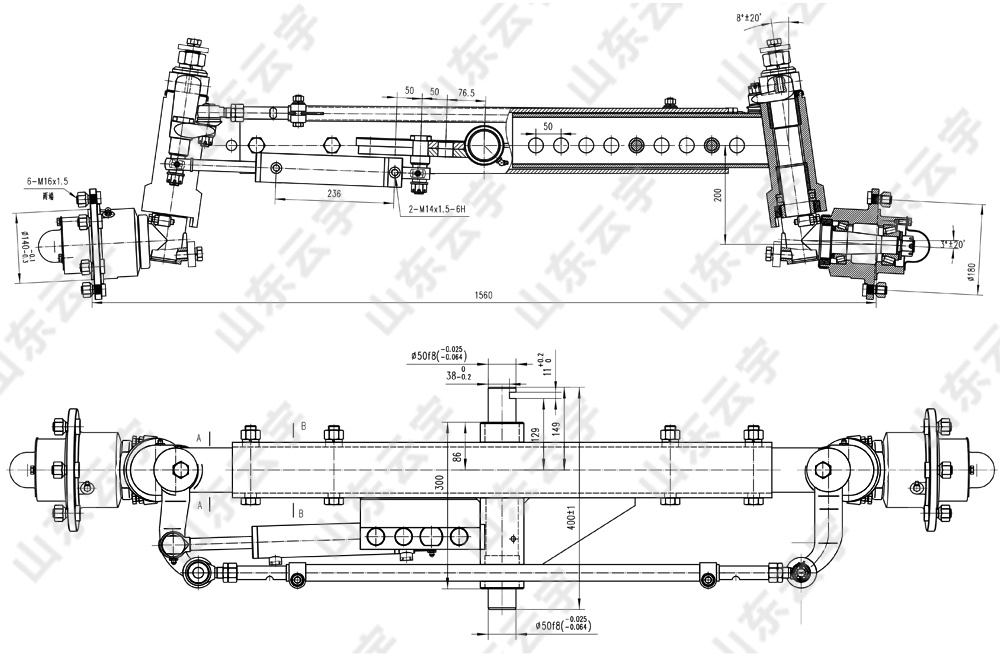

Main connection dimensions


Characteristics:

● Hydraulic steering can be realized.

● Swing type central swing pin.

● Adjustable spoke distance and wide range.

● Special profiles are adopted with good rigidity and high strength.



Technical parameter

Front wheel camber

Kingpin inclination angle

Kingpin inclination angle
0°
Toe-in
0-5mm

Maximum angle

45°(inside)

Spoke distance

1560±3
Maximum swing angle

Each side(11°)
