Farm Machinery Axle

HOME > PRODUCTS > Product Center > Farm Machinery Axle > Farm Machinery Axle

Front Drive Axle for YT1404 Tractor

Product type: Farm Machinery Axle

Address:NO.257 Kangwang West Road,Feicheng City,

Address:Shandong Province.

Tel:+86.538 2095198   2095186   3302973   3302663

After-sale service:+86.538 3302961   2095189   2095178

Fittings department:+86.538 2095198 3302651

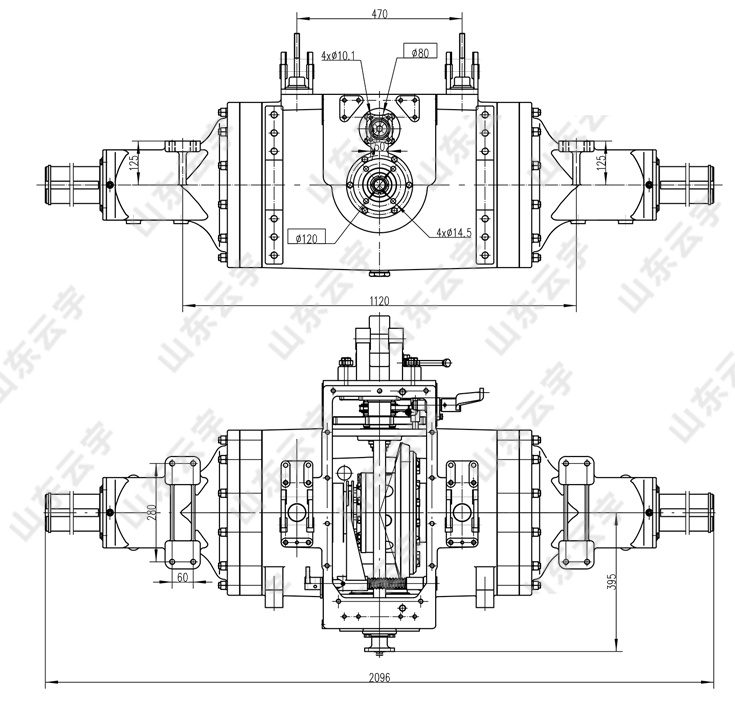

Main connection dimensions






Characteristics:

● It consists of the central transmission,  planetary terminal transmission, power output, and the braking system. It is a secondary deceleration structure with large output torque.

● The rear axle box body is the whole type. The steel beams on both sides of the frame are respectively connected to the two brake shells of the rear axle box body, and the rear frame is removed and the structure is compact.

● The service brake is wet type, clamp, multi-pieces, steel ball self-reinforcing type, hydrostatic control, and unilateral braking can be implemented; The parking brake is used to control the running brake.

● With differential locks

● They are integral structures, both the two brake case and the rear axle box.

● Independent type  postpositive   two-speed  standard power-output shaft, 540/1000 rpm, 760/1000 rpm can be selected

● Suitable for 140-horsepower four-wheel drive tractors.

Technical parameter

Maximum input torque
620/1400-1700Parking brakebinding handle control service brake
final drive ratio
3.7071
power output shaft type
rear-mounted,independent type
Reduction ratio at wheel
7.071
power output shaft model(rpm)
540/1000,Optional 760/1000
Total speed ratio
21.715
power output shaft model
8-tooth rectangle spline shaft(axial diameter 48)
(N.m)Braking moment
6540
choose to 8-tooth rectangle spline shaft
(axial diameter 38)
Maximum load-carrying capacity
3400
or 6-tooth rectangle spline shaft
(axial diameter 35)
differential lock
dowel pin differential lock
or 21-tooth involute splines-measuring  shaft(axial diameter 35)
service brake
wet disc brake with 4 pcs of steel ball and self energizing type,hydrostatic pedal-operated
power output shaft control
Vice clutch machine control,choose to multiple disc brake,electrohydraulic control
