YT1504 Tractor Front Drive Axle

Product type: Farm Machinery Axle

Address:NO.257 Kangwang West Road,Feicheng City,

Address:Shandong Province.

Tel:+86.538 2095198   2095186   3302973   3302663

After-sale service:+86.538 3302961   2095189   2095178

Fittings department:+86.538 2095198 3302651

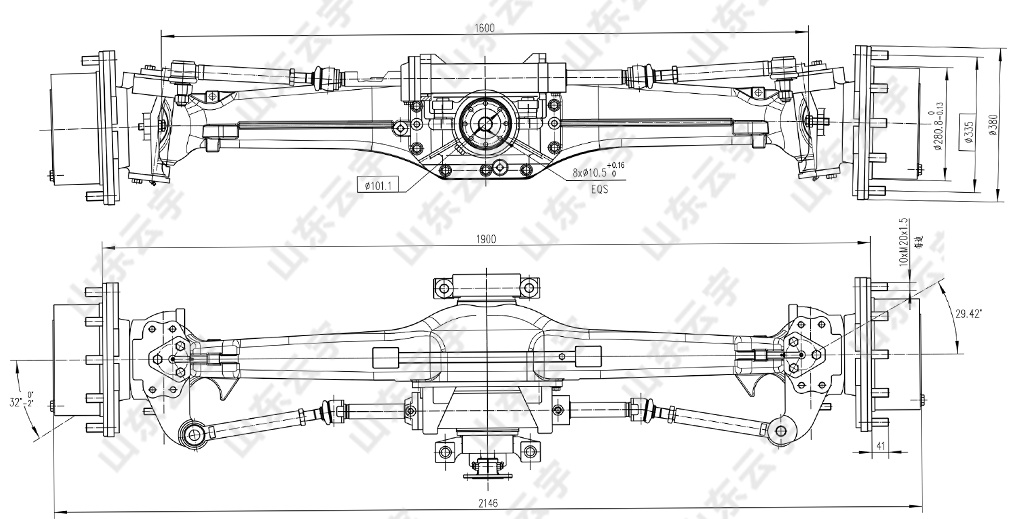

Main connection dimensions



Characteristics:

● The internal structure includes the central deceleration,differential,isokinetic universal node,and the terminal planetary deceleration.it is a secondary deceleration structure with a large output torque.

● The stability of the whole vehicle is improved by adopting the middle drive shaft and swing central swing pin.

● The Whole housing is rigid.

● With a limited slip system,good passability and improved handling performance.

● Centralized two-way hydraulic steering cylinder,compact structure,light and flexible steering.

● Adoped double-acting independent oil road,full hydraulic front wheel steering,the angle can up to 55°,small turning radius,good passability.

● Suitable for 120-160 horsepower four-wheel drive tractors.

Technical parameter

final drive ratio
2.538
diamter of steering
oil cylinder(mm)
65
reduction ratio at wheel
6.923
oil cylinder
shank diameters(mm)
36
total speed ratio
17.6
strole of steering
oil cylinder(mm)
138×2
front-wheel
    postitioning parameters
front-wheel camber angle
1°30'
oil-tube connector
2×9/16〞-18UNF
kingpin sidewise
inclination angle
7°
differential type
limited differential lock
kingpin inclination angle
6°
rated capacities(Kg)
7000
toe-in front of wheel(mm)
0-2
input torque(Kn)
1600NmMa
maximum steering angle of front wheel
32°
