Farm Machinery Axle

HOME > PRODUCTS > Product Center > Farm Machinery Axle > Farm Machinery Axle

YT2604 Tractor Front Drive Axle

Product type: Farm Machinery Axle

Address:NO.257 Kangwang West Road,Feicheng City,

Address:Shandong Province.

Tel:+86.538 2095198   2095186   3302973   3302663

After-sale service:+86.538 3302961   2095189   2095178

Fittings department:+86.538 2095198 3302651

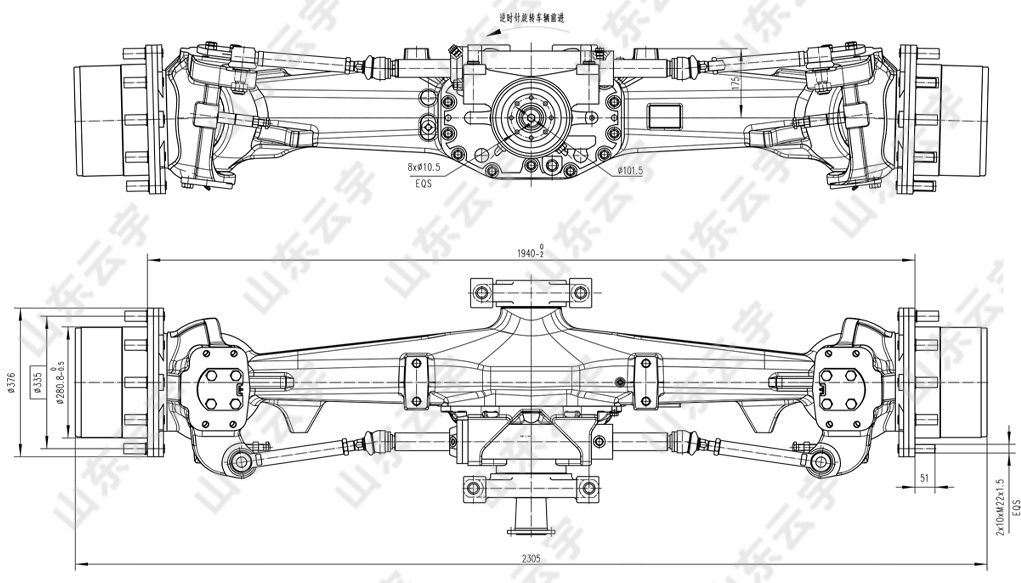

Main connection dimensions


Characteristics:

● Adopted two-stage deceleration mechanism,and the spiral bevel gear is used to slow down.The two sides are planetray deceleration mechanisms.The transmission ratio is large and the output torque is large.

● The Whole housing is rigid.

● Adopted hydraulic multislice differential olck,lock balance,smooth operation,improve the passage of the entire machine under bad conditions.

● Centralized two-way hydraulic steering cylinder,compact structure,light and flexible steering.

● Adoped double acting independent oil circuit,full hydraulic front wheel steering,the angle is up to 55°,small turning radius,good passability.

● Steering angle sensors may be provided upon request to support unmaned tractors.

● Suitable for 220-280 horsepower four-wheel drive tractors.

Technical parameter

final drive ratio
2.75
diamter of steering
oil cylinder(mm)
80
reduction ratio at wheel
6.4
oil cylinder
shank diameters(mm)
45
total speed ratio
17.6
strole of steering
oil cylinder(mm)
138×2
front-wheel
    postitioning parameters
front-wheel camber angle
1°30'
oil-tube connector
M18×1.5
kingpin sidewise
inclination angle
7°
differential lock
control oil mouth
M14×1.5
kingpin inclination angle
6°
differential lock controloil
oil pressure
2MPa
toe-in of front  wheel(mm)
0-2
rated capacities(Kg)
8500
maximum steering angle of front wheel
55°
output torque(KN)
49
