Front Drive Axle for YT1004 Tractor

Product type: Farm Machinery Axle

Address:NO.257 Kangwang West Road,Feicheng City,

Address:Shandong Province.

Tel:+86.538 2095198   2095186   3302973   3302663

After-sale service:+86.538 3302961   2095189 ;  2095178

Fittings department:+86.538 2095198 3302651

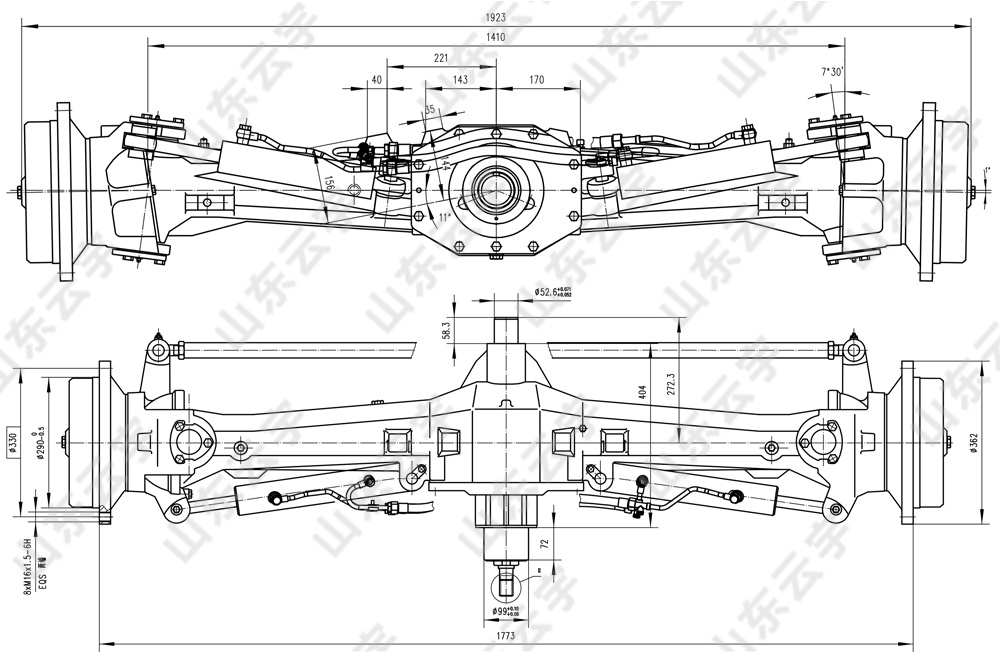

Main connection dimensions

Characteristics:

● The centrally positioned transmission shaft and swing-type central swing pin.

● The inner structure includes central reducer,transmission differential.constant velocity joint,and end planetary reducer,ect.The external structure of six square crosssection,integral-type axle housing.

● Adorted independent oil-way,front-wheel steeringunder hydraulic pressure,the steering angle canreach 50°.

● With good rigidity,light weight and seismic performance advantages.

Technical parameter

(N.m)Maxium input torque
456N.m
Transmission ration
16.125
Front-wheel positioning
Front-wheel camber angle
1
Kingpin incl ination
730"
Kingpin incl ination angle
10
Toe-in of front wheel
0-5mm
Steering type
Indepent oil-wey,front-Wheel steering solely under hydraulic pressure
Oscillative angle of front axle
11(Each)
Maximum steering angle of front wheel
50°, Able to reach 45°through adjustment 40°
Diameter of steering oil cylinder
Ф48
Stroke of steering oil cylinder
200mm
Maximum allowable pressure for steering cylinder
16MPa
Maximun load-carrying capacity
3000Kg
Number of steering  oil cylinder
2
Spline parameters
Z=14,m=2,a=30
