Front Drive Axle for YT1204 Tractor

Product type: Farm Machinery Axle

Address:NO.257 Kangwang West Road,Feicheng City,

Address:Shandong Province.

Tel:+86.538 2095198   2095186   3302973   3302663

After-sale service:+86.538 3302961   2095189  ; 2095178

Fittings department:+86.538 2095198 3302651

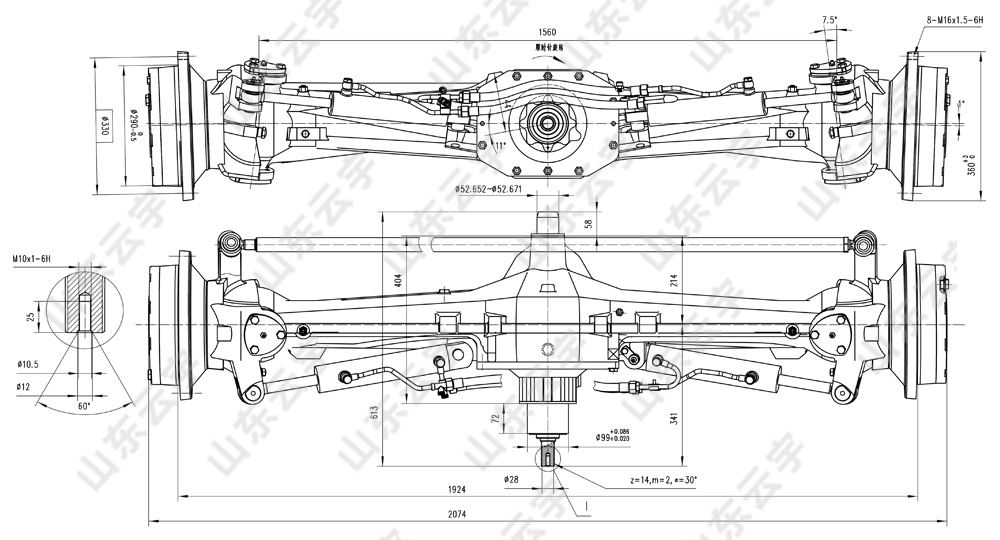

Main connection dimensions

Characteristics:

● Two-stage decelerating structure is adopted for steeringdrive axle.universal joint rotating at constant angular velocity is adopted to connet the inner semi shaft withthe drive shaft.with the drive shaft.

● Integral-type ductile-iron axle housing with adequaterigidity and light weight is adopted.

● Centrally positioned transmission shaft and swing-typecentral swing pin are adopted.

● Front-wheel steering solely under hydraulic pressure,the steering angle can reach 50°.

● Suitable for 120 horsepower four-wheel drive tractorand similar products.

Technical parameter

Maxium input torque
456N.m
Transimssion ration
16.264/17.727/17.92
Front-wheel positioning
Front-wheel camber angle
1
Kingpin incl ination angle
730"
Kinpin caster angle
10
Toe-in of front wheel
0-5mm
Steering type
Indepent oil-wey,front-Wheel steering solely under hydraulic pressure
Oscillative angle of front axle
11(Each side)
Maximum steering angle of front wheel
50°, Able to reach 45°through adjustment 40°
Diameter of steering oil cylinder
Ф48
Stroke of steering oil cylinder
200mm
Maximum allowable pressure for steering cylinder
20MPa
Maximun load-carrying capacity
3500Kg
Net weight
300Kg
Spline parameters
Z=14,m=2,a=30
