WZD75SA Loader-digger Drive Axle

Product type: Loader Drive Axle

Address:NO.257 Kangwang West Road,Feicheng City,

Address:Shandong Province.

Tel:+86.538 2095198   2095186   3302973   3302663

After-sale service:+86.538 3302961   2095189   2095178

Fittings department:+86.538 2095198 3302651

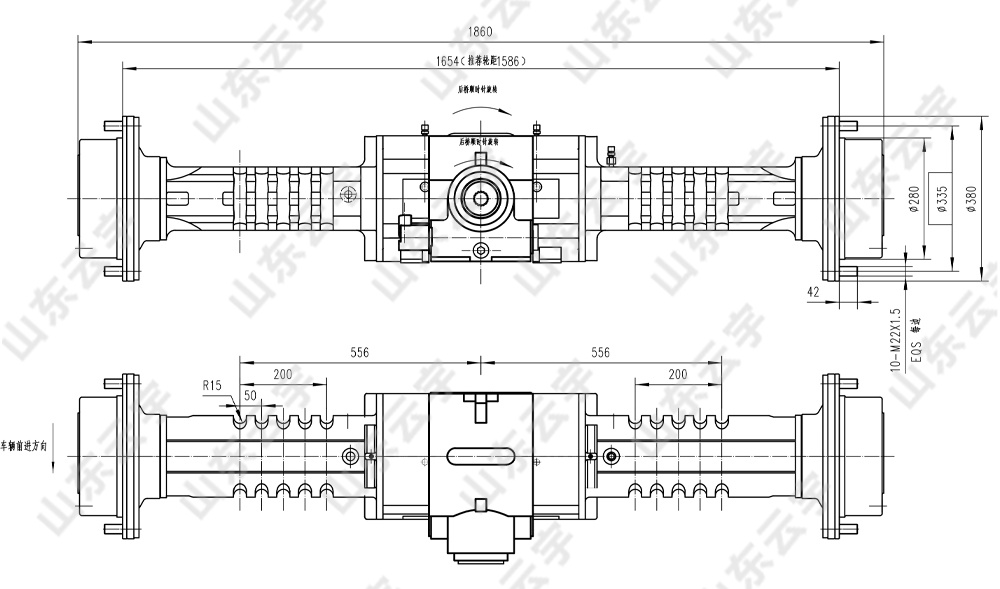

Main connection dimensions





Characteristics:

● The axle housing has a variety of installation dimensions to meet the needs of different uers.

● Adoping two-stage reduction transmission mechanism,namely spiral bevel gear reduction and wheel planetary reduction mechanism,the input torque is large and the transmission efficiency is high.

● Built-in normally closed multi-disc wet brake,brake half shaft,sping pressure,hydraulic release,good braking performance.

● Suitable for 7.5 tons wheeled excavator and compatible construction machinery.

Technical parameter

Final drive ratio
2.333
Reduction ratio at wheel
6.923
Total speed ratio
16.152
Dead load
19000Kg
Dynamic load
7600Kg

Brake

Number of friction plates per side
27600N.m
Brake torque
Max.(prime)
21500N.m
When the sheet wears 2mm
75
Oil-tube connector
M10×1
Release brake maximum oil pressure4.8MPa
Brake oil discharge
Prime
30ml
Max.(When the sheet wears 2mm)
58ml
Max.(When the sheet wears 4mm)
87ml
Working temperature
-20~+110℃
