CY35SA Wet Brake Drive Axle

Product type: Loader Drive Axle

Address:NO.257 Kangwang West Road,Feicheng City,

Address:Shandong Province.

Tel:+86.538 2095198   2095186   3302973   3302663

After-sale service:+86.538 3302961   2095189   2095178

Fittings department:+86.538 2095198 3302651

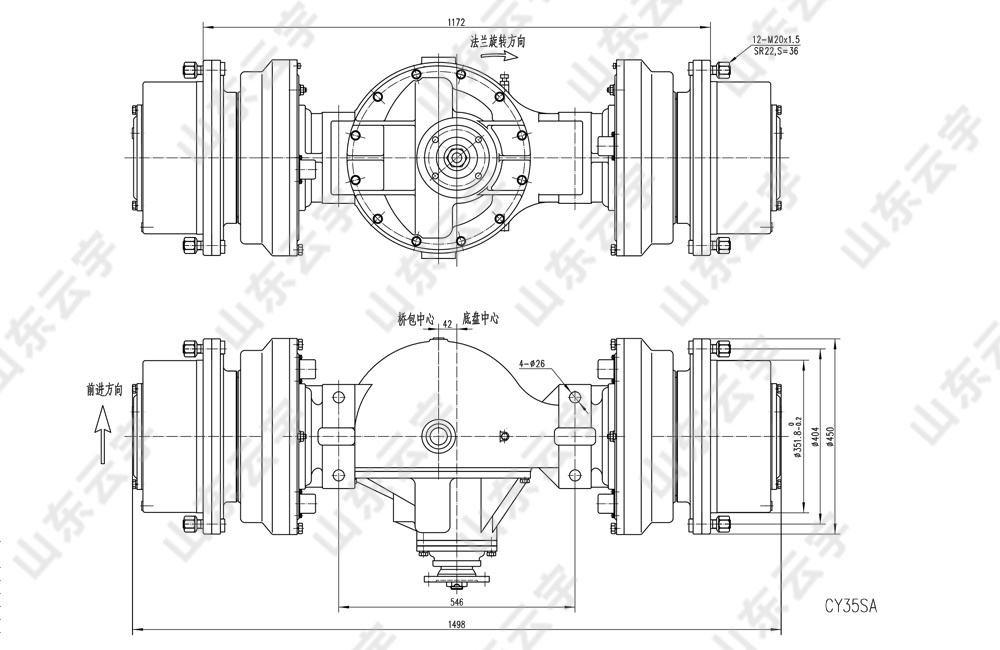

Main connection dimensions




Characteristics:

● Suitable for underground dquipment such as 1.5 cubic bowl scraper.

● The Axle housing adopts integral cast steel axle housing with compact structure and small track.

● Adopting two-stage reduction transmission mechanism namely spiral bevel gear reduction mechanism,the input torque is large and the transmission efficiency is high.

● The brake is a normally closed multi-disc wet brake.after being installed on the wheel side recuction planetary gear,the brake hub,the spring is pressed,the hydurulic pressure is released,and the braking performance is good.

Technical parameter

final drive ratio
5.286
reduction ratio at wheel
4.8
total speed ratio
25.37
axle load
18500Kg
input torque
2300N.m

brake


normally closed type

oil-tube connector
M14×1.5
brake release displacement
initial state
40
when the friction plate wears the most
75
brakerelease oil pressure
6.9pa
initial state
braking torque
(per axle)
16020N.m
  0.5mm friction plate wears
15180N.m
1mm friction plate wears
14340N.m
1.5mm friction plate wears
13490N.m
2mm friction plate wears
12650N.m
2.5mm friction plate wears
11810N.m
