ZL80A Loader Drive Axle

Product type: Loader Drive Axle

Address:NO.257 Kangwang West Road,Feicheng City,

Address:Shandong Province.

Tel:+86.538 2095198   2095186   3302973   3302663

After-sale service:+86.538 3302961   2095189   2095178

Fittings department:+86.538 2095198 3302651

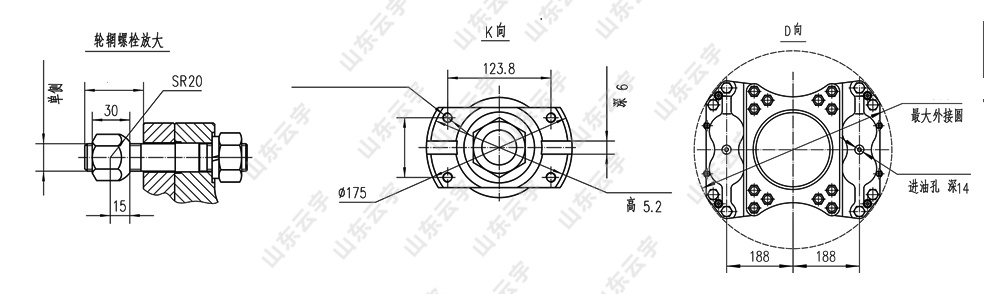

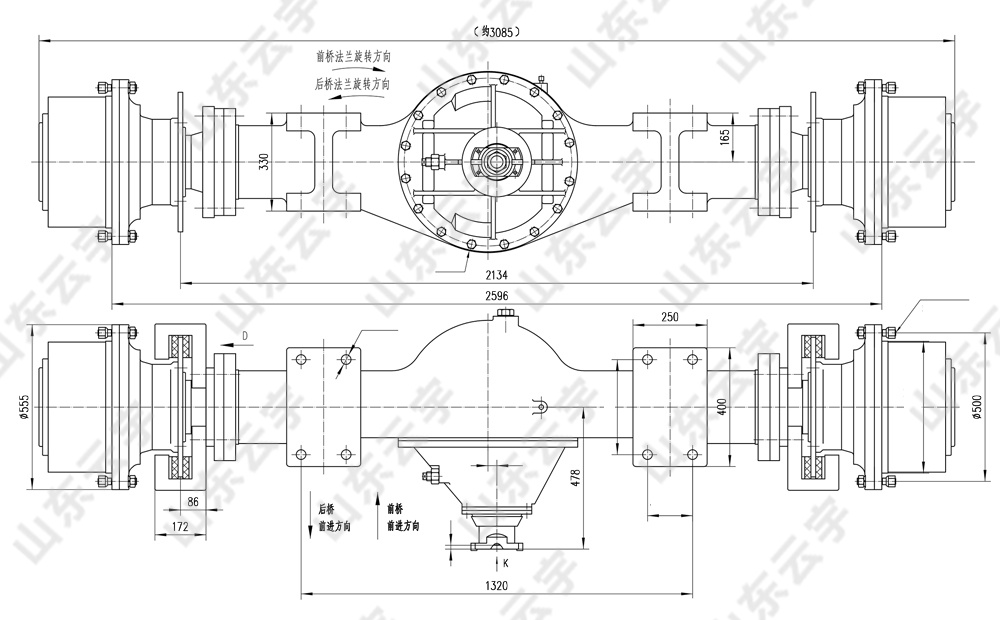

Main connection dimensions



Characteristics:

● Two-stage decelerating mechanism is adopter for the drive axle.

● The spiral bevel gears with great load-carrying capacity and high efficiency are adopter for the main transmission.

● The hub includes the planetary decelerating-mechanism.

● The main reducer is equipped with the commonbevel-gear differential mechanism with simplestruture and flexibele differential function.

● Ductile iron serves as the material for the axlehousing.

● The brake in clamp-disc braking mode.with fourbrake calipers,has great braking moment.

● The drive axle is suitable for the 25 ton forklift and 8 ton loader.

Technical parameter

Main transmission ratio
4.889
Reduction ratio at wheel
4
Total reduction ratio
19.556
Input torque
500Kg
Input torque
12000N.m
Brake
Cylinder diameter
Ф75
Braking oil pressure
13MPa
oil-tube connector
M12×1.25
Brake moment
20000N.m×4/pce
