Loader Drive Axle

HOME > PRODUCTS > Product Center > Loader Drive Axle > Loader Drive Axle

WL65 Front Steering Drive Axle

Product type: Loader Drive Axle

Address:NO.257 Kangwang West Road,Feicheng City,

Address:Shandong Province.

Tel:+86.538 2095198   2095186   3302973   3302663

After-sale service:+86.538 3302961   2095189   2095178

Fittings department:+86.538 2095198 3302651

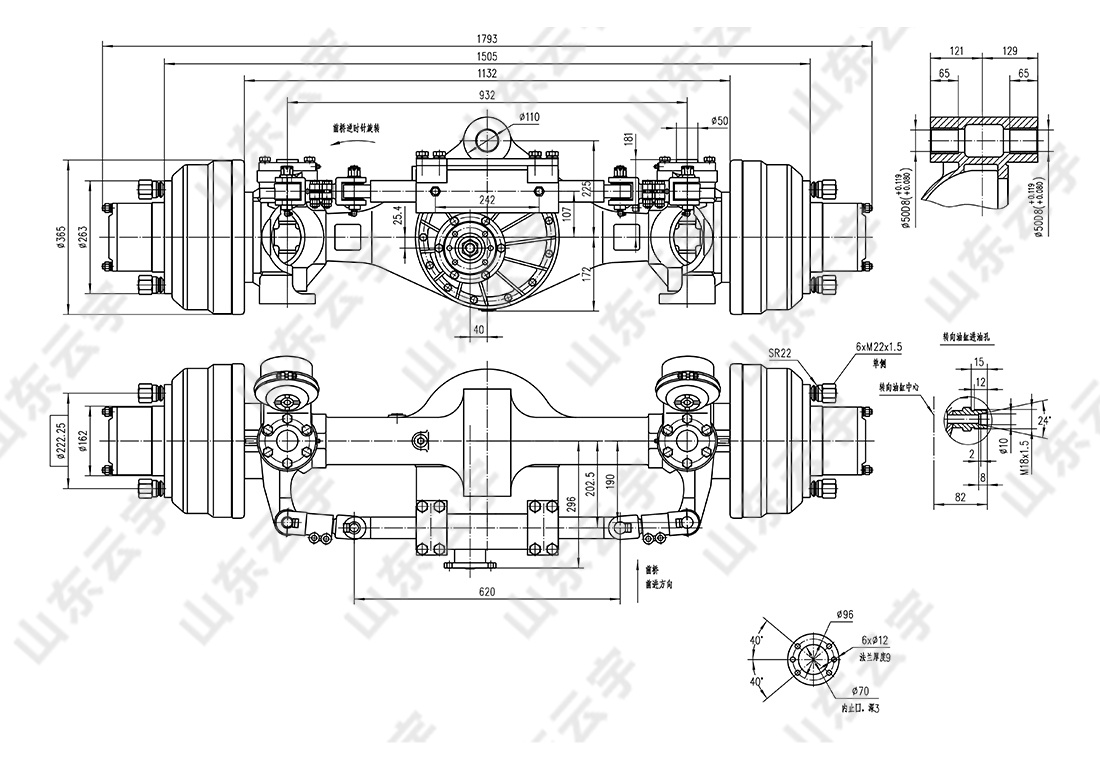

Main connection dimensions


Characteristics:

● Adopted the integral casting steel bridge shell,the rigidity is good.

● Front axle steering,steering angle can up to 30°.

● The semi-axle is thickening and the transmission is more reliable.

● Applicable to 6-8 ton wheel excavators.

Technical parameter

rated load
300Kg
speed ratio of the main reducer
6.167(37/6)
font-wheel cmber angle
7000N.m
toe-in
1-4mm
corner of sheep wheel
30°
braking way
Air brake
brake specification

Ф320×95

double diaphragm chambe
124㎡
brake pressure
0.6~0.8MPa
oil mass
GL-4 85W/90 2.5L
