Loader Drive Axle

HOME > PRODUCTS > Product Center > Loader Drive Axle > Loader Drive Axle

ZL60 Series Loader Drive Axle

Product type: Loader Drive Axle

Address:NO.257 Kangwang West Road,Feicheng City,

Address:Shandong Province.

Tel:+86.538 2095198   2095186   3302973   3302663

After-sale service:+86.538 3302961   2095189   2095178

Fittings department:+86.538 2095198 3302651

Main connection dimensions

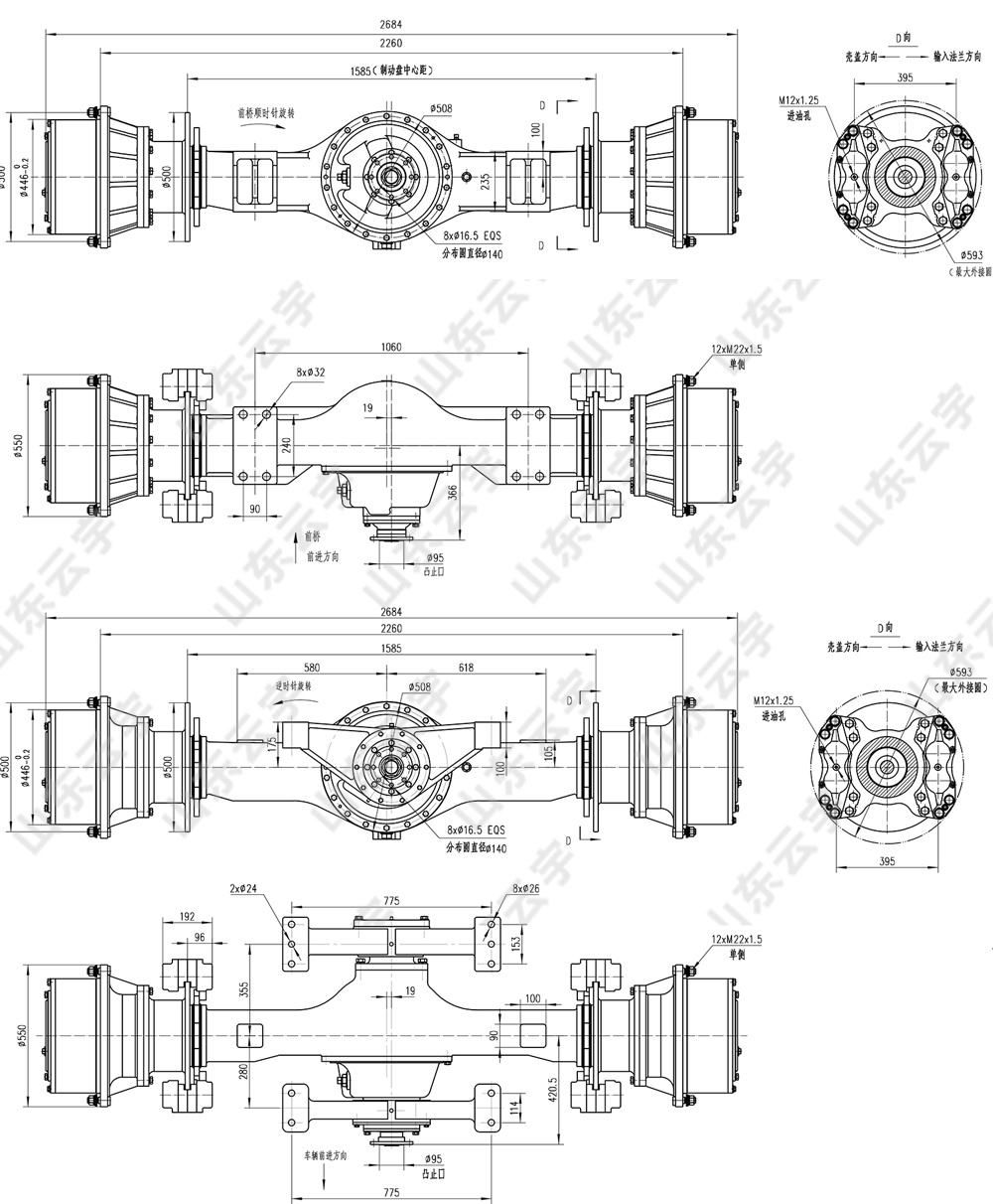

ZL60 loader drive axle:

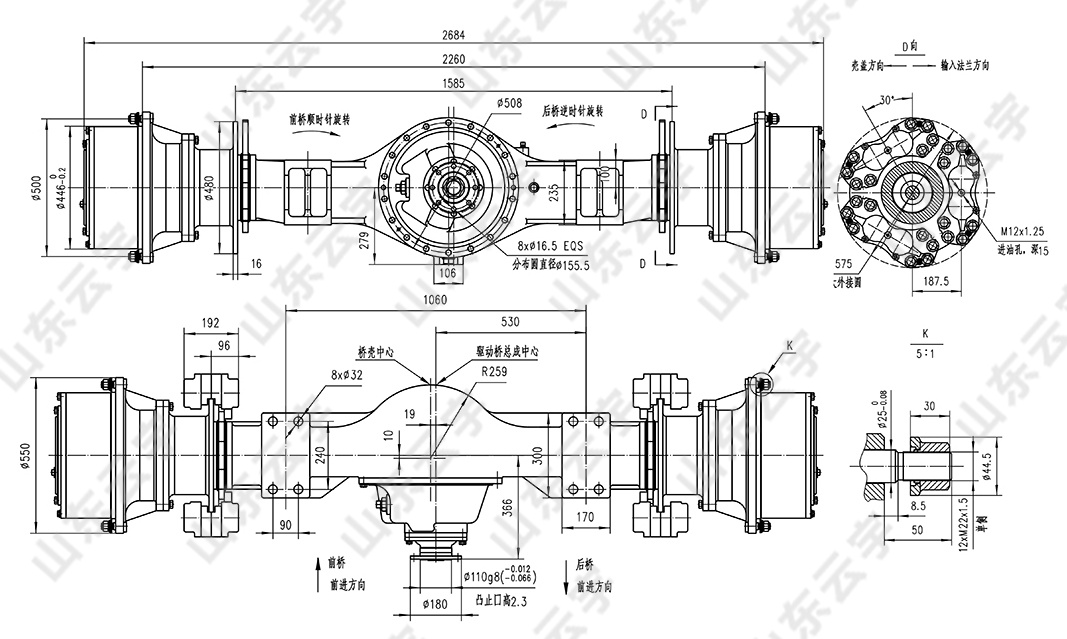

ZL60G loader drive axle:


Characteristics:

● Two-stage decelerating structure is adopted for the drive axle.

● The spiral bevel gears with great load-carrying capacity and high efficiency are adopted for main drive.

● The wheel is planetary decelerating structure.

● The main reducer is equipped with the common bevel-gear differential mechrmism simple slructure and flexible differential fimctum.

● The cast steel with adequate rigidity servers as material for the axle housing.

● The brakein clamydisc braking mode has great braking moment.

● The drive axle is suitable for the ZL60 loader and 220horsepower tractor.

Technical parameter

Main technical parameters of ZL60 ZL60D drive axles
Model
ZL60
ZL60D
Speed ratio of the main reducer
3.7
4.22
Reduction ratio at wheel
5.6
Total speed ratio
20.72
23.64
Axle load
500Kg
Input turque
12000N.m
Brake
Cylinder diameter
Ф75
Number of cylinder
4
Oil-tube connector
M12×1.25
Braking oil pressuer
9.8MPa
Brake radius
R187.5mm
Brake moment
11500N.m/pce


ZL60G loader drive axle
Speed ratio of main reducer
4.22
Reduction ratio at wheel
5.6
Total speed ratio
23.64
Axle load
3300Kg
Input torque
6200N.m
Brake
Cylinder diameter
Ф75
Number of cylinder
4
Oil-tube connector
M12×1.25
Braking oil pressure
9.8MPa
Brake radius
R201.5mm
Brake moment
12200N.m/pce
