ZL25 Loader Drive Axle

Product type: Loader Drive Axle

Address:NO.257 Kangwang West Road,Feicheng City,

Address:Shandong Province.

Tel:+86.538 2095198  ; 2095186   3302973   3302663

After-sale service:+86.538 3302961   2095189   2095178

Fittings department:+86.538 2095198 3302651

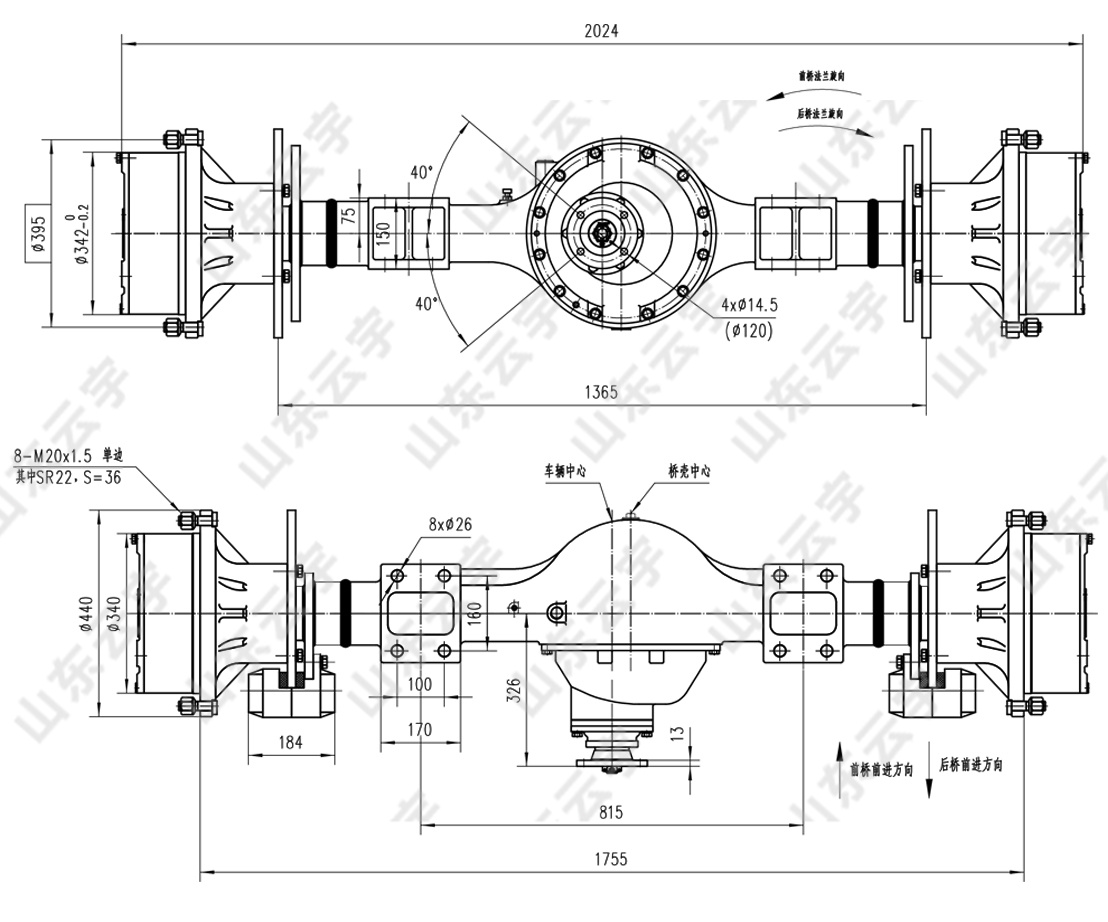

Main connection dimensions


Characteristics:

● Two-stage decelerating structrue is adopted for the drive axle.

● Spiral bevel gears with great load-carrying capacity and high efficiency are adopted for main drive.

● The wheel is planetary decelerating structure.

● The main reducer is equipped with the common bevel-gear differential mechanism with simple structure and flexible differential function.

● Cast steel with adequate rigidity serves as material for the axle housing.

● The brake in clamp-disc braking mode has great braking moment.

● Suitable for a ZL25 loader.

Technical parameter

Main
transmission
ratio
Transmission
ratio
at wheel

Total
transmission
ratio

Axle
load
Input
torque
Clamp-disc brake
Number of
cylinders
Cylinder
diameter
Braking
oil pressure
Oil
inlet
Braking
radius
Braking
moment
4.875
5.875
4.4
21.45
25.77
13500Kg
1700N.m
4
75mm
9.8MPa
M12×1.25
173mm
9000N.m/pce
