ZL15F Loader Drive Axle

Product type: Loader Drive Axle

Address:NO.257 Kangwang West Road,Feicheng City,

Address:Shandong Province.

Tel:+86.538 2095198   2095186  ; 3302973   3302663

After-sale service:+86.538 3302961   2095189   2095178

Fittings department:+86.538 2095198 3302651

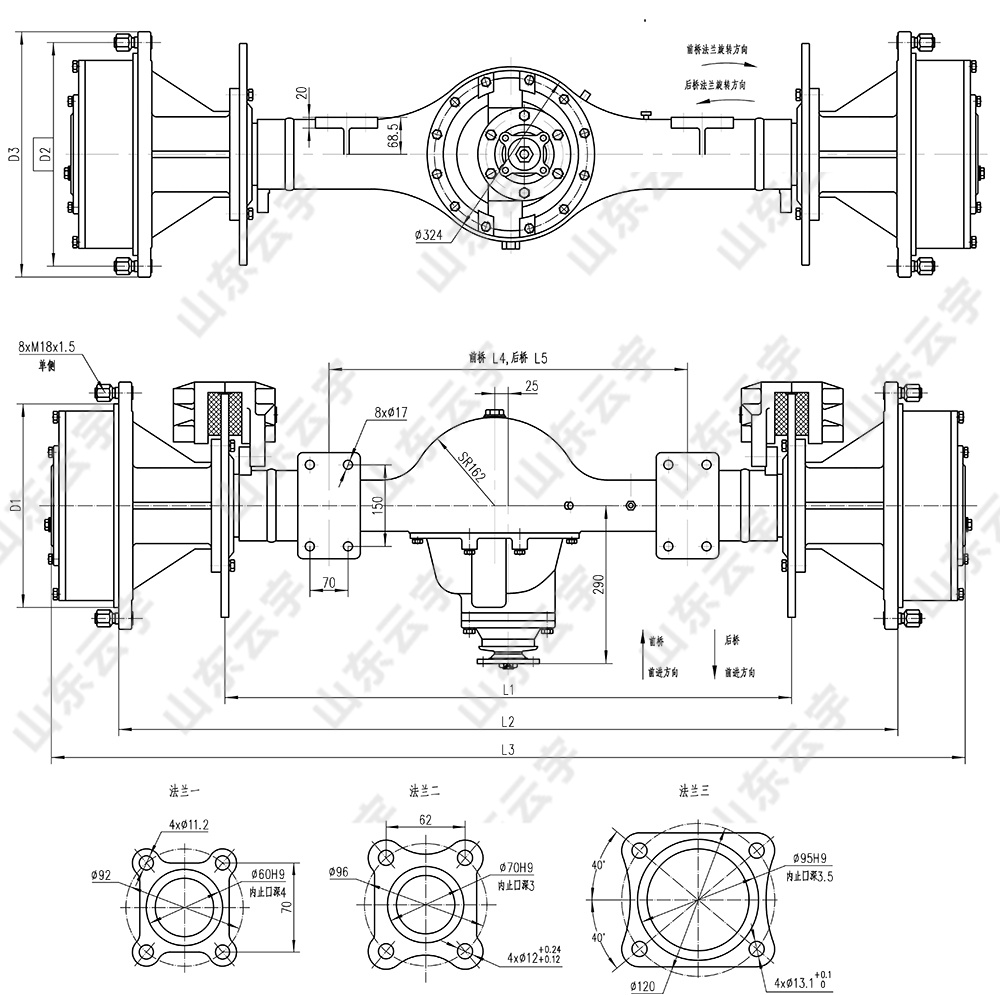

Main connection dimensions


Characteristics:

● Two-stage decelerating stucture is adopted for the drive axle.

● Spiral bevel gears with great load-carrying capacity and high efficiency are adopted forthe main transmission.

● The wheel is planetary decelerating structure.

● The main reducer is equipped with the common bevel-gear differential mechanism with simple structure and flexible differential function.

● Cast steel with adequate rigidity serces as material for the axle housing.

● The brake in clamp-disc braking mode has great braking moment.

● Three types of input flanges are provided for users' option.

Technical parameter

               Model
 Parameters
ZL10B
ZL15F
ZL15F(A)
ZL16D
ZL16E
Main tranmission ratio
5.833
5.833
5.833
5.833
5.833
Transmission ratio at wheel
3.23
3.9
3.23
4.4
4.4
Overall transmission ratio
18.84
22.75
18.84
25.665
25.665
Axle load
7500Kg
7500Kg
7500Kg
7500Kg
7500Kg
Input torque
785N.m
785N.m
785N.m
785N.m
785N.m
brake
Number of cylinder
2
2
2
2
2
Cylinder diameter
Ф75
Ф75
Ф75
Ф75
Ф75
Braking oil pressure
9.8MPa
9.8MPa
9.8MPa
9.8MPa
9.8MPa
Braking radius
R157
R167
R167
R162
R162
Brake moment
4070N.m
4300N.m
4300N.m
4300N.m
4300N.m
