Loader Drive Axle

HOME > PRODUCTS > Product Center > Loader Drive Axle > Loader Drive Axle

ZL15J Loader Drive Axle

Product type: Loader Drive Axle

Address:NO.257 Kangwang West Road,Feicheng City,

Address:Shandong Province.

Tel:+86.538 2095198   2095186   3302973   3302663

After-sale service:+86.538 3302961   2095189   2095178

Fittings department:+86.538 2095198 3302651

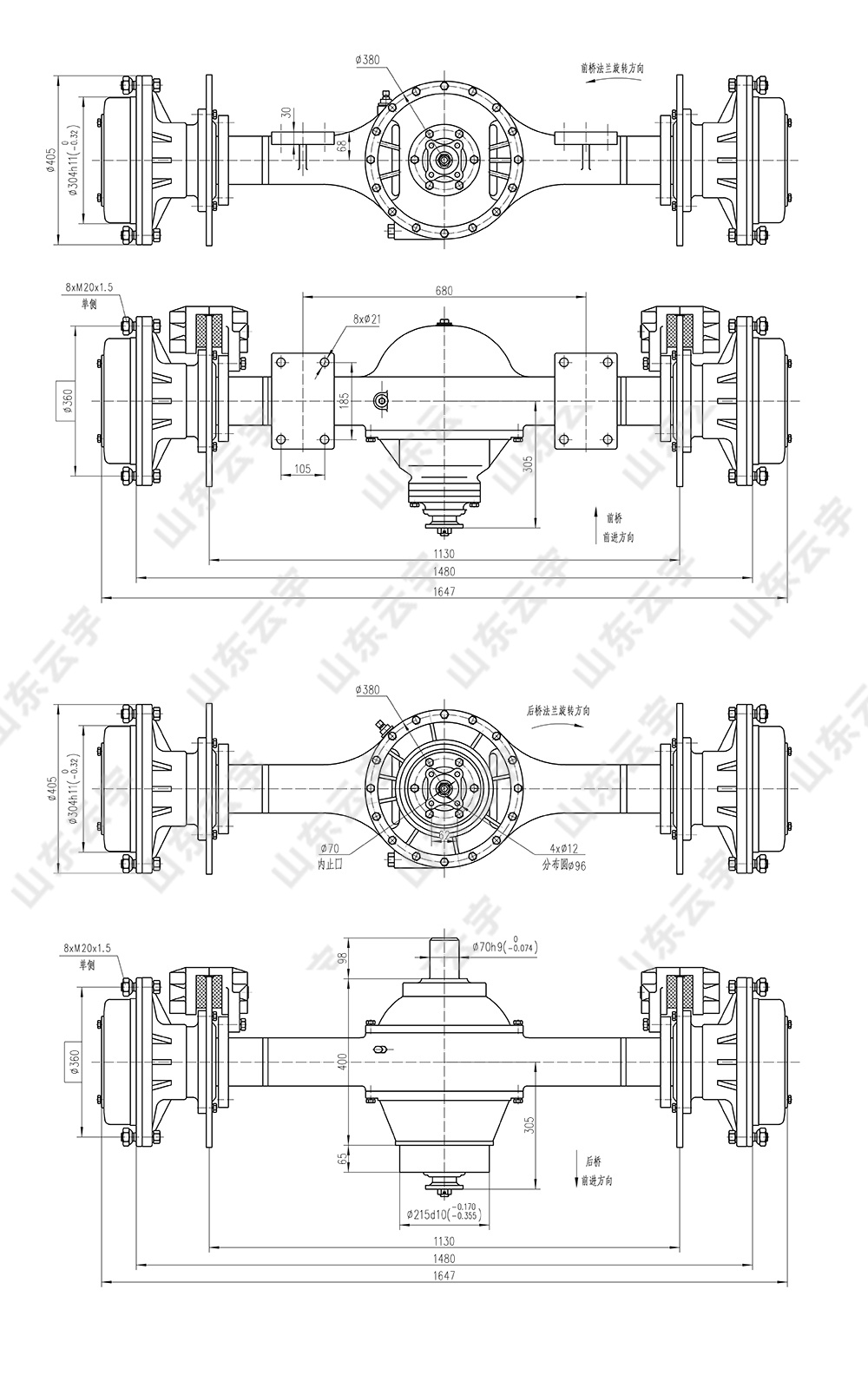

Main connection dimensions


Characteristics:

● Two-stage decelerating stucture is adopted for the drive axle.

● Spiral bevel gears with great bearing capacity,high and high efficiency  are adopted for main tansmission.

● The wheel is planetry decelerating structure.

● The main reducer is equipped with the common bevel-gear differential mechanism with simple structure and flexible differential function.

● Cast steel with adequate rigidity serves as material for the axle housing.

● The drive axles with either of the two turning directions are provided for users'option.

● The brake in clamp-disc braking mode has great braking moment.

Technical parameter

Paramerers
ZL15J
ZL20F
Main transmission ratio
6.667
6.667
Transmission ratio at wheel
3.23
3.90
Overall transmission ratio
21.53
26.00
Axle load
8500Kg
8500Kg
Input torque
900N.m
900N.m
Brake
Number diameter
2
Cylinder diameter
Ф75
Braking oil pressure
9.8MPa
Brake radius
R167mm
Brake moment
4300N.m/pce
