ZL30 Series Loader Drive Axle

Product type: Loader Drive Axle

Address:NO.257 Kangwang West Road,Feicheng City,

Address:Shandong Province.

Tel:+86.538 2095198   2095186   3302973   3302663

After-sale service:+86.538 3302961   2095189   2095178

Fittings department:+86.538 2095198 3302651

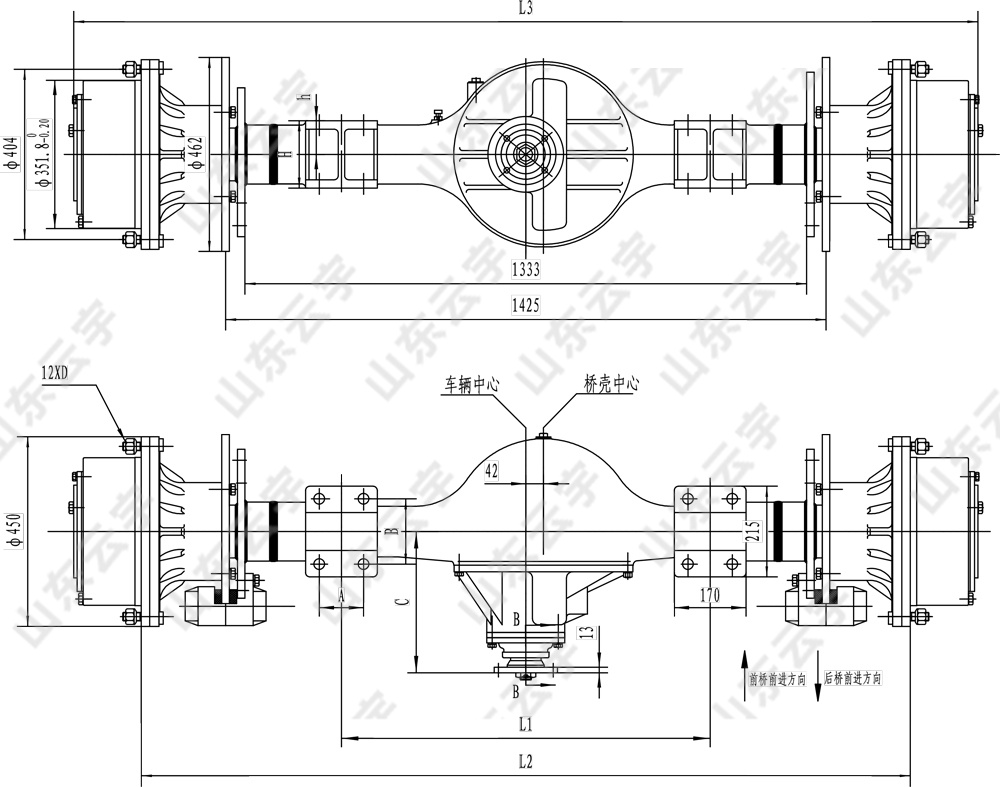

Main connection dimensions

Connection dimensions
Model
L1
L2
L3
A
B
C
D
H
h
flange
Rotation direction(front)
ZL30
875
1825
2146
105
155
336
M20×1.5
150
75
Round flange
Ananti clockwise
ZL30(1)
875
1825
2146
105
155
336
M20×1.5
150
75
Round flange
Clockwise
ZL30(2)
865
1825
2146
95
160
330
M20×1.5
175
100
Square Flange
Clockwise
ZL30(3)
865
1825
2146
95
160
330
M22×1.5
190
100
Square Flange
Ananti clockwise
ZL30(4)
865
1825
2146
95
160
330
M22×1.5
190
90
Square Flange
Ananti clockwise
ZL30(5)
865
1825
2146
95
160
330
M22×1.5
180
90
Square Flange
Ananti clockwise
ZL30(6)
960
1825
2146
100/140
160
336
M22×1.5
180
90
Square Flange
Ananti clockwise
Characteristics:

● Two-stage decelerating structure is adopted for drvve axle.

● Spiral bevel gears with great bearing capacity and high efficiency are adopted for main drive.

● The wheel is planetary decelerating structure.

● The main reducer is equipped with the common bevel-gear differential mechanism with simple structure and flexible differential function.

● Cast steel with adequate rigidity serves as material for the axle housing.

● The brake in clamp-cisc braking mode has great braking moment.

● Suitable for ZL30 loader and 14-18T road roller.

Technical parameter

Technical parameters
Main
transmission
ratio
Transmission
ratio
at wheel
Total
transmission
ratio
Axle
load
Input
torque
Clamp-disc type brake
Cylinder
mumbers
Cylinder
diameter
Braking
oil pressure
oil
inlet
Braking
radius
Braking
moment
4.222
4.8
20.26
18500kg
2300N.m
4
75
9.8MPa
M12×1.25
186
9660n.m/pce
