Loader Drive Axle

HOME > PRODUCTS > Product Center > Loader Drive Axle > Loader Drive Axle

CY20S Wet-type Braking Drive Axle

Product type: Loader Drive Axle

Address:NO.257 Kangwang West Road,Feicheng City,

Address:Shandong Province.

Tel:+86.538 2095198   2095186   3302973   3302663

After-sale service:+86.538 3302961   2095189   2095178

Fittings department:+86.538 2095198 3302651

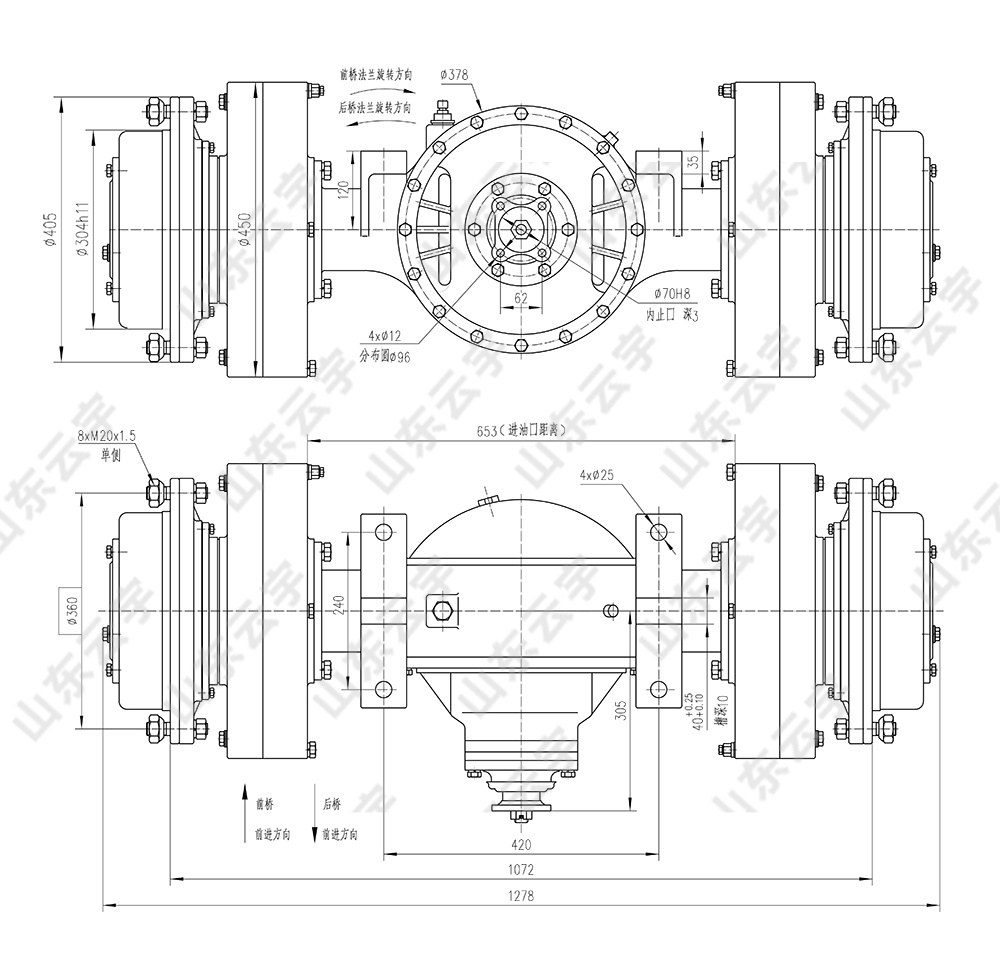

Main connection dimensions

Characteristics:

 Two-stage decelerating mechanism is adopted for the drive axle.the spiral bevel gear deceleration and wheel planetary reduction mechanism,input torque,high transmission efficiency.

● The brake in enclosed multi-disc wet-type baking mode,with braking hub,hydraulic pressing,spring release and excellent braking performance,is installed behind the planetary hub decelerating-gears.

● The drive axle is with small tread,wheel track,wheel tread,applicable for underground equipments such as underground carry-scraper.

Technical parameter

Bevel  ratio
6.667
Hub ratio
3.9
Total ratio
26
Axle load
8500Kg
Input torque
900N.m
Brake
Braking oil pressure
5.5MPa
Braking moment
11000N.m/pce
