Loader Drive Axle

HOME > PRODUCTS > Product Center > Loader Drive Axle > Loader Drive Axle

ZL18S Wet-type Braking Drive Axle

Product type: Loader Drive Axle

Address:NO.257 Kangwang West Road,Feicheng City,

Address:Shandong Province.

Tel:+86.538 2095198   2095186   3302973   3302663

After-sale service:+86.538 3302961   2095189   2095178

Fittings department:+86.538 2095198 3302651

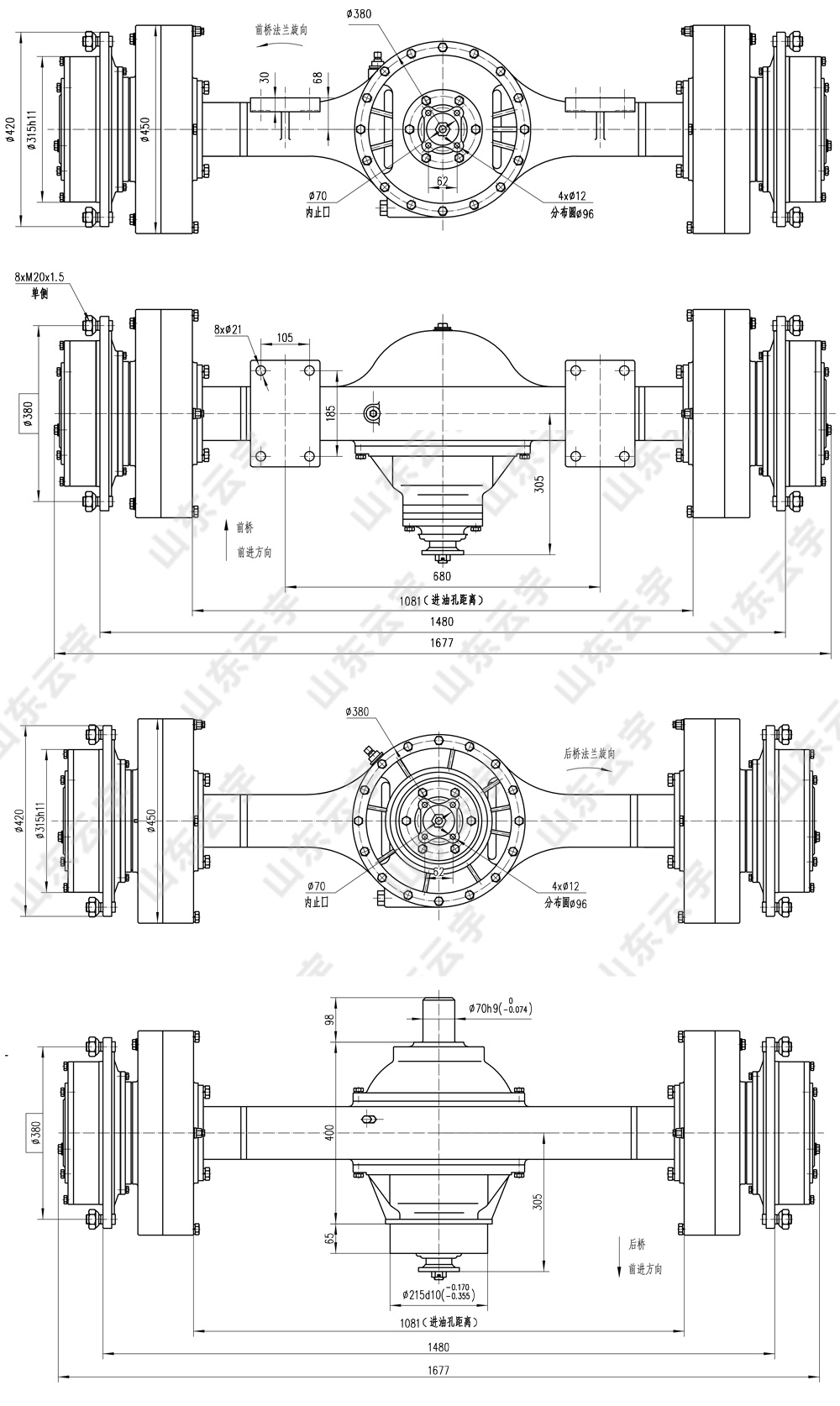

Main connection dimensions

Characteristics:

● The brake in enclosed multi-disc wet-type braking mode,with braking hub,hydraulic pressing,spring release and excellent braking performnce,is installed behind the planetray hub decelerating-gears.

● Suitable for the ZL20 wheel loader and the engineering machineries in similar conditions.

Technical parameter

Main transmission ratio
6.667
Hub transmission ratio
3.23
Tltal trasmission ratio
21.53
Axle olad
8500Kg
Input torque
900N.m
Brake
Braking oil pressure
5.5MPa
Braking moment
11000N.m/pce
